PCB Design Services

In the world of electronics, the technologies have grown so much that even the PCB designs also have played a very important role for quality products. Nowadays PCBs have become more complex in terms of technology, clock speeds and density. In the past few years PCB design was not considered so important by any product manufacturer. But with today’s technology the PCB design is the topmost priority to achieve a good product. If the PCB is designed in primitive way, it is most likely to fail in all areas of functionality. It is very much necessary for any manufacturer to consult the professionals to bring up perfect products.

And we are here to give you total solution to bring up your product with confidence. Since we have vast experience in the field of PCB Design, Board Assembly, Design of Electronics Enclosures, Product Testing and Validation, we assure all the clients with satisfied services. We can provide the complete support from PCB design to the enclosure design. We also take up the part of the projects like PCB design or Board Assembly or Enclosure design etc. separately.

PCB is the one of the main components in any electronics product. If the PCB is designed in crude fashion the product will definitely fail and manufacturer will incur losses. Before the product is released be aware of your PCB design done as per the specifications. And we are here to give quality PCB design services so that our client will not fail but succeed. We have capabilities of designing high speed, impedance controlled multi layer PCBs up to 32 layers. We have expertise in the field of Telecommunication, Automation, Defence, Automobiles, Security, Medical, Power supply, educational etc.

During design process several design rules are adopted like routing topology, length matching, differential pairs, EMI/EMC, impedance matching etc. All these rules may not be applicable to all PCBs but mostly used in high speed PCBs. Other than this placement of components as per the flow is an essential point. There are many components with different packages available in the market. The present day’s components have shrunk in to small sizes and closer pin pitch arrangements. We adopt all kinds of fine pitch components like, TQFP, LQFP, PQFP, QFN, DFN, LPCC, LFCSP, MSOP, PDSO, QSOP, SOP, SSOP, TSSOP, SOT, BGA, PGA, FBGA, VFBGA, LGA, PLCC, SMD and Press fit Connectors and all packages of Discrete components.

PCB Deign Inputs

• We accept schematic in any form may be hard copy, PDF file or Design file of relative EDA tools.
• Mechanical drawing with dimension, mounting holes and placement constraint. Preferably in DXF format, if not available PDF format is also acceptable.
• Data sheets of electronic and mechanical components in PDF format to create footprint and mechanical components.
• Based on the mechanical inputs we will prepare Board outline for component placement.
• In case of high speed board we need a list of critical signals and the preferred layer stack up.

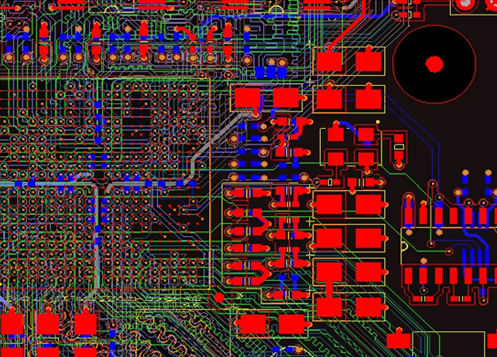

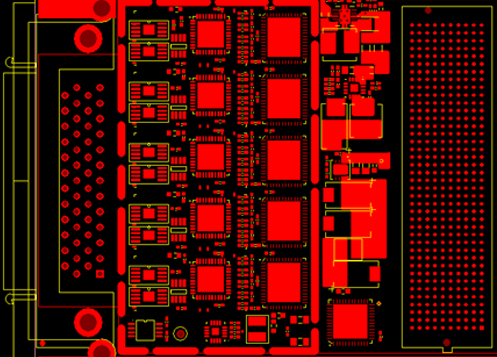

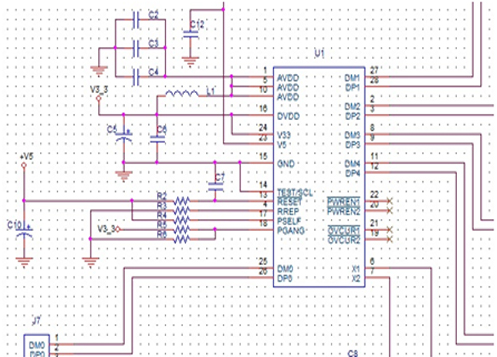

• Left side showed Schematic and placement sample board.

PCB Design Flow

• Schematic Capture
• Footprint Creation
• Footprint Allocation
• Net list generation
• Import net list to layout Tool.
• Set Board outline as per given inputs
• Placement of critical components as per drawing instruction.
• Placement of all components as per flow
• Set up design rules
• Routing step by step on priority basis.
• DRC verification
• Generating Gerber and other output files for PCB Manufacturing and Assembly
• Verification of Gerber files with CAM tool.

PCB Technology Applicable

• Single and Double Sided board
• High speed Multiplayer board up to 32 layers
• Single ended with 50 ohm and Differential pair with 100 ohm routing
• Footprint creation as per IPC standard minimum of 0.5 mm pitch
• High speed design Rules, EMI/EMC
• Impedance control
• Length matching
• Differential pairs
• Split power Plane and Ground plane etc.
• Rules driven Design

Deliverable

• Schematics drawing
• BOM in Excel format
• Gerber Files for PCB fabrication
• Fabrication Drawing
• Assembly Drawing
• Pick and Place data
• Paste mask file for Assembly
• DXF file for Mechanical assembly
• 3D files for Mechanical assembly
